Name: Kubota KX183-3 KX185-3 Main Hydraulic Pump PSVL2-36CG-2 OEM KYB B0610-36003 B0610-36002 B0610-36001 for Mini Excavator Repair parts
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: KX183-3 KX185-3
Price: 475.00 USD
Availability: InStock

خونه > محصولات > قطعات بیل پمپ هیدرولیک >

Kubota KX183-3 KX185-3 Main Hydraulic Pump PSVL2-36CG-2 OEM KYB B0610-36003 B0610-36002 B0610-36001 for Mini Excavator Repair parts

محل منبع:

ساخت چین

نام تجاری:

Belparts

شماره مدل:

KX183-3 KX185-3

با ما تماس بگیرید

درخواست نقل قول

Kubota KX183-3 KX185-3 Main Hydraulic Pump PSVL2-36CG-2 OEM KYB B0610-36003 B0610-36002 B0610-36001 for Mini Excavator Repair parts

جزئیات محصول

برنامه:

بیل مکانیکی

نوع:

PSVL2-36CG-2

شماره قطعه:

B0610-36003 B0610-36002 B0610-36001

مدل:

KX183-3 KX185-3

گارانتی:

1 سال

حمل و نقل:

UPS دریا / هوا / اکسپرس DHL FEDEX

نام قطعه:

پمپ هیدرولیک

کیفیت:

OEM

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

قیمت

Negotiated price

جزئیات بسته بندی

بسته بندی جعبه چوبی

زمان تحویل

1 تا 5 روز

شرایط پرداخت

T/T، تضمین تجارت، پی پال، L/C، D/P، D/A، وسترن یونیون، مانی گرام

قابلیت ارائه

100 عدد در ماه

محصولات مرتبط

YANMAR VIO45 VIO45-5 VIO55-5B VIO55-6A VIO55-6B Main Hydraulic Pump PSVD2-21E B0600-21031 OEM 172961-73102 For Mini Excavator Parts

بهترین قیمت رو بدست بیار

پمپ اصلی حفاری R55-7 R60 پمپ هیدرولیک 31M8-10020 31M8-10021 برای هیوندای

بهترین قیمت رو بدست بیار

Kubota KX161-3 KX161-3S Main Hydraulic Pump PSVL-54CG-16 B0610-54010 OEM RD538-61112 RD538-61111 RD538-61115 RD411-61113 for Mini Excavator

بهترین قیمت رو بدست بیار

پمپ هیدرولیک کوبوتا KX161-3 KX163-5 KX165 KX183-3 قطعات مینی حفاری KYB PSVL2-27CG-1

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

+86 19924616345

ron@belparts-china.com

86-020-32384870

حالا تماس بگیرید

توضیحات محصول

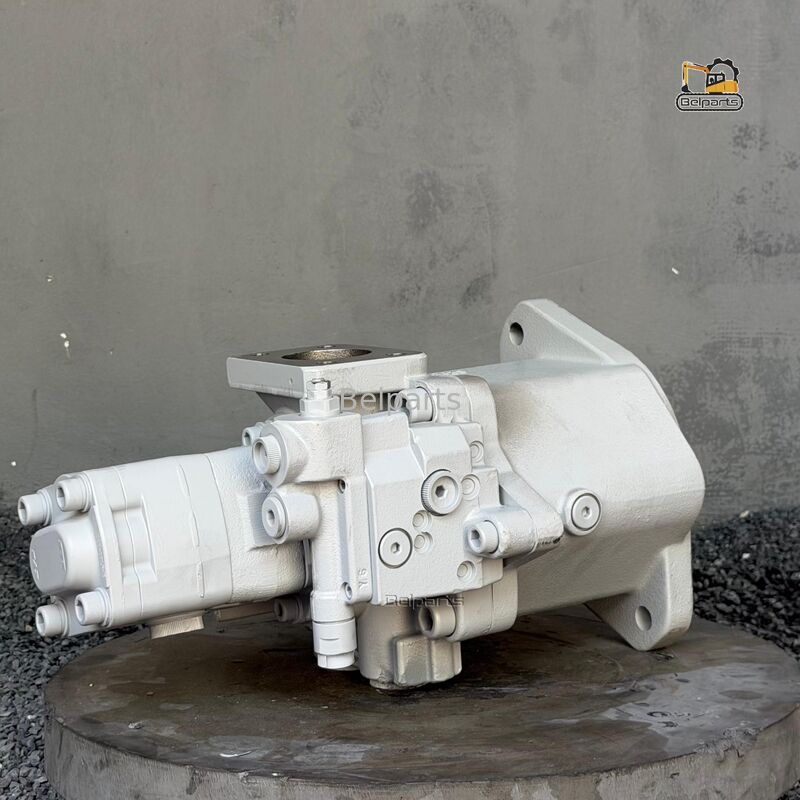

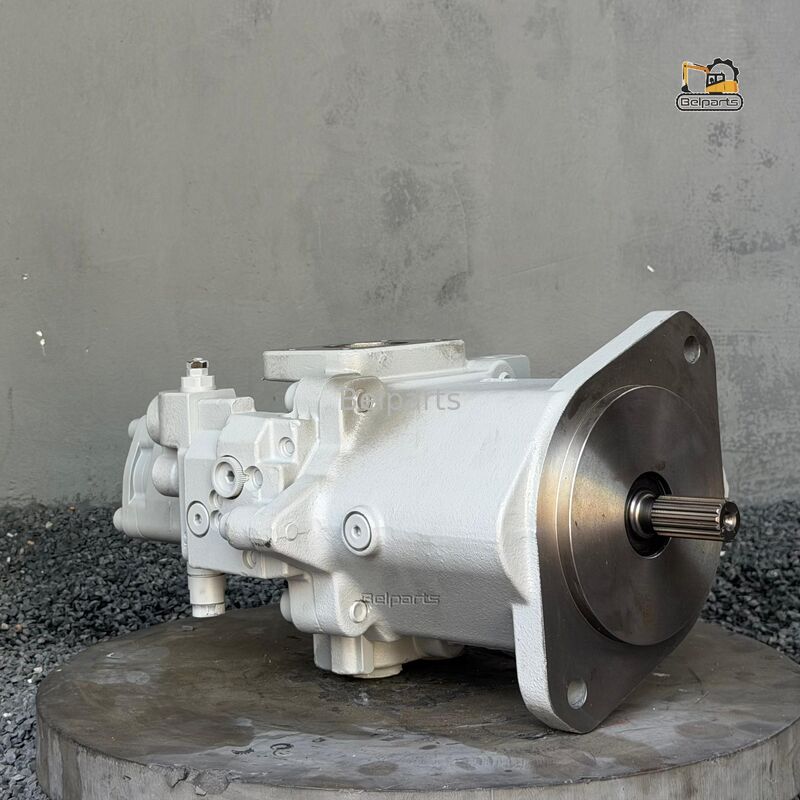

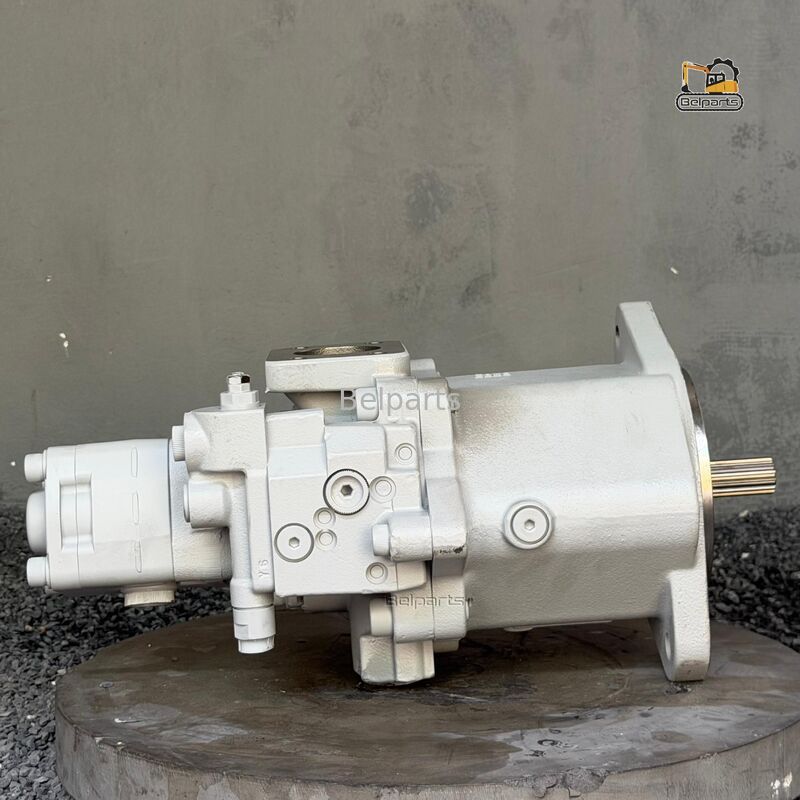

PSVL2-36CG-2 B0610-36001 B0610-36002 B0610-36003 Main Hydraulic Pump for Kubota KX183-3 KX185-3 Excavator

1. OEM Part Number & Machine Compatibility

Original pump model: KYB PSVL2-36CG-2 tandem variable displacement piston pump assembly
Kubota OEM part numbers: B0610-36001, B0610-36002, B0610-36003
Fully compatible excavator models: Kubota KX183-3, KX185-3
All three listed part numbers are successive supersession replacement versions, sharing identical external mounting dimensions and internal hydraulic configuration, fully interchangeable for direct replacement installation

2. Core Technical Specifications

Structure type: Dual variable axial piston main pump (first stage + second stage) integrated with built-in pilot charge gear pump
Displacement per main pump: 36 cm³/rev, perfectly matched to factory hydraulic system configuration of KX183-3 / KX185-3 midi excavator platform

Second Stage Specified Parameters

Rated working pressure (second stage): 27.0 MPa
Maximum relief pressure (second stage): 28.0 MPa
Rated operating speed (second stage): 2000 rpm
Corresponding rated input power (second stage): 42.5 kW
Overall working speed range precisely calibrated to match rated output of original V3800DI engine equipped on these machines
Mounting bolt layout, input shaft spline dimension and hydraulic port positioning strictly comply with Kubota OEM dimensional drawings
Pump housing adopts high-strength ductile iron; internal pistons, valve plates and friction wear components use quenched alloy steel to improve abrasion resistance and extend overall service life

3. Internal Structure & Functional Introduction

Dual main piston pumps generate high-pressure hydraulic oil to drive boom, arm, bucket, travel and swing compound working movements
Integrated pilot gear pump supplies stable pressurized oil for pilot control circuits and system hydraulic oil replenishment
Built-in total power matching regulator automatically adjusts total pump flow output responding to real-time load changes, preventing engine stall under heavy digging and loading conditions
Optimized tandem compact layout fits neatly inside the designated hydraulic compartment of KX183-3 and KX185-3 medium mini excavators

4. Product Advantages

Exact 1:1 OEM outer casting dimensions, supporting plug-and-play installation with no modification required for hydraulic pipelines or engine mounting structure
Every finished pump undergoes comprehensive hydraulic bench inspection including pressure stability, flow uniformity and internal leakage testing before shipment
Complete maintenance spare parts are kept in stock, including overhaul seal kits, piston assemblies, swash plates and valve plates for separate component replacement during overhaul work
Multiple supersession OEM numbers fit two machine iterations, simplifying spare part ordering, stock classification and inventory management for suppliers and repair service centers

5. Packaging & Global Delivery Details

Input shaft and all hydraulic ports are coated with anti-rust grease and sealed with protective dust plugs
The entire pump is wrapped with moisture-proof plastic film and secured inside export-grade solid wooden crate to avoid collision and moisture corrosion during long-distance sea or air transportation
In-stock items can be dispatched within 3 to 5 working days after order confirmation
Multiple global shipping solutions are available: international air express, sea LCL/FCL bulk shipment and overland truck transportation for global customers

6. FAQ

Q: Are B0610-36001, B0610-36002 and B0610-36003 mutually interchangeable?
A: Yes, these three part numbers are iterative updated replacement numbers for the same KYB PSVL2-36CG-2 pump assembly, fully cross-replaceable for KX183-3 and KX185-3.
Q: Can this pump install directly on both KX183-3 and KX185-3?
A: Yes, unified mounting sizing and factory-calibrated hydraulic settings enable direct bolt-on fitting for both models with no extra adjustment or modification work needed.
Q: What is the relation between PSVL2-36CG-2 and these Kubota OEM part numbers?
A: PSVL2-36CG-2 is the official KYB original pump model designation, while the three B0610 serial numbers are exclusive OEM part numbers assigned by Kubota for this complete main pump assembly.
Q: Are individual repair spare parts available for this hydraulic pump?
A: Corresponding full overhaul seal kits, piston shoe assemblies, valve plates, swash plates and standalone pilot gear pump spare parts are all available for partial overhaul and individual component replacement work.
