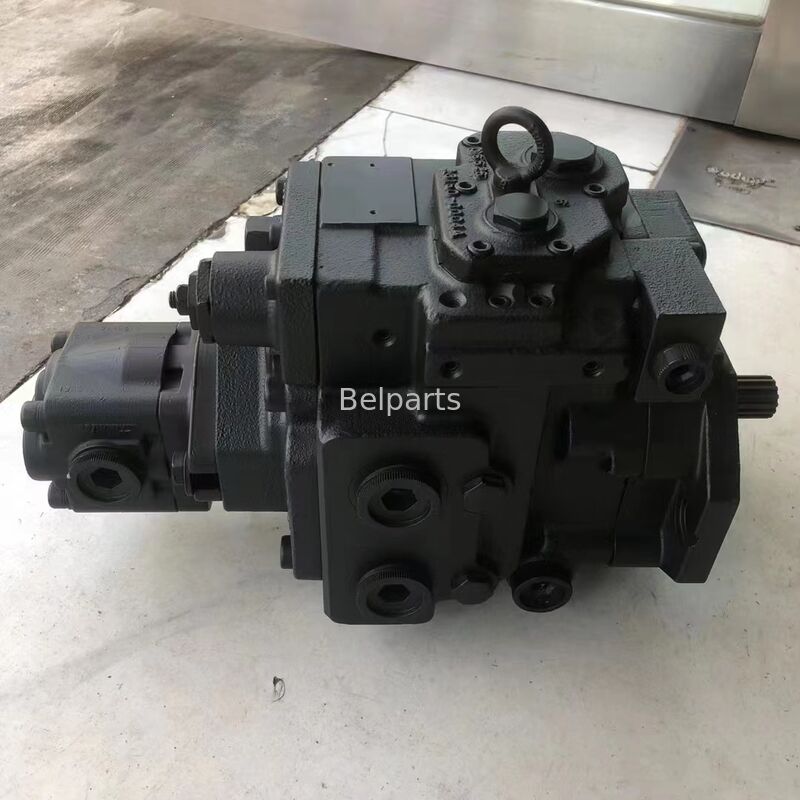

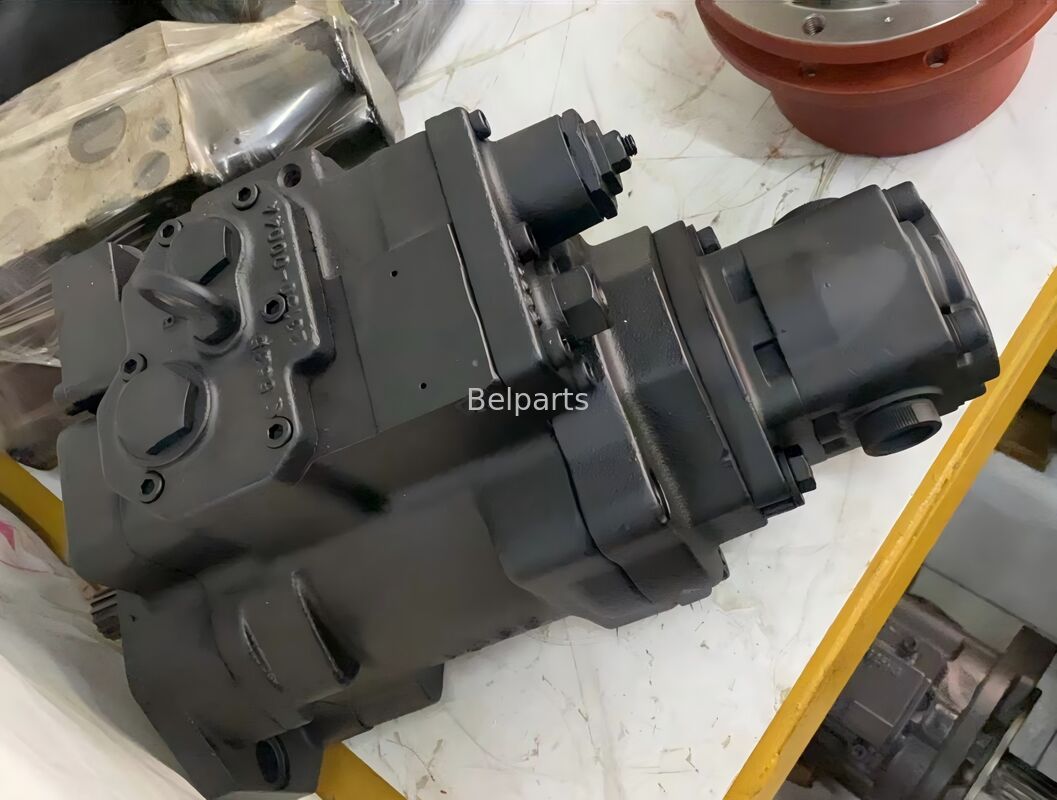

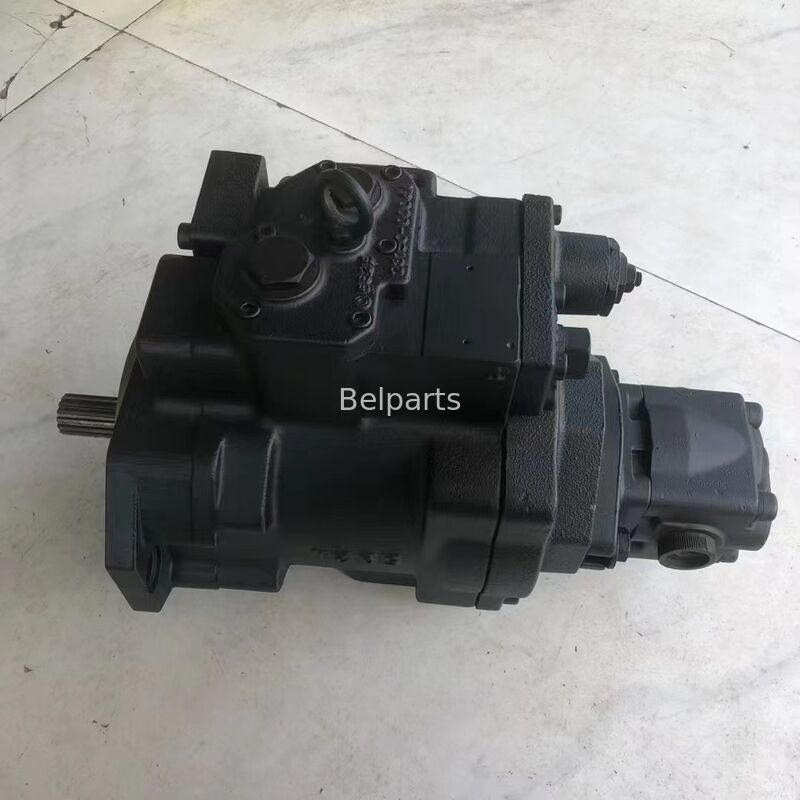

Name: SK50UR-2 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: SK50UR-2
Price: 475.00 USD
Availability: InStock

خونه > محصولات > قطعات بیل پمپ هیدرولیک >

SK50UR-2 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump

SK50UR-2 hydraulic pump for excavator,mini excavator piston pump,hydraulic pump spare parts with warranty

mini excavator piston pump

hydraulic pump spare parts with warranty

محل منبع:

مکان اصلی

نام تجاری:

Belparts

شماره مدل:

SK50UR-2

با ما تماس بگیرید

درخواست نقل قول

SK50UR-2 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump

جزئیات محصول

تایپ کنید:

K3SP30-110R-2C01

نام قطعه:

پمپ هیدرولیک

برنامه:

بیل مکانیکی

شماره قطعه:

PY10V00003F1

کیفیت:

بازسازی برند اصلی

گارانتی:

6 ماه

حمل و نقل:

UPS دریا / هوا / اکسپرس DHL FEDEX

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

قیمت

Negotiated price

جزئیات بسته بندی

بسته بندی کیس چوبی

زمان تحویل

1 تا 5 روز

شرایط پرداخت

T/T، تضمین تجارت، پی پال، L/C، D/P، D/A، وسترن یونیون، مانی گرام

قابلیت ارائه

100 عدد در ماه

محصولات مرتبط

ZX27U-2-3 ZX30U-2-3 ZX35U-2-3 Hydraulic Pump For Hitach Mini Excavator Parts PVD-1B-32P-11G5 Piston Main Pump 4642385 4642386 4466791 4605638 4699382

بهترین قیمت رو بدست بیار

SK50UR-2 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump

بهترین قیمت رو بدست بیار

ZX75UR-3 ZX75USK-3 ZX75US-3 ZX85USB-3 ZX85US-3 ZX75UST Swing Motor Reducer SG015 For Hitachi Mini Excavator 9270522 4684827 4470057 4429255 4469027

بهترین قیمت رو بدست بیار

Swing Motor Reducer EX120-2 EX120-3 For Hitachi Mini Excavator 4334356 9111265 4241171 AP5S58 Rotary Device EX120-2M EX120K-3

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

+86 18520556972

belparts01@gmail.com

86-020-32384870

حالا تماس بگیرید

توضیحات محصول

SK50UR-2 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump

Product Overview

SK50UR-2 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump

Application	Excavator
Part Name	Hydraulic Piston Pump
Model	SK50UR-2
Type	K3SP30-110R-2C01
Part Number	PY10V00003F1
Warranty	6 months
Weight	55KG
Delivery Time	3-7 Days
Shipment	Express/Freight/Sea/Train
Quality	Original Brand Rebuild
MOQ	1 Piece
Payment Term	T/T, Trade Assurance, PayPal and etc
Category	Construction Machinery Part

Spare Parts List

#	Part No.	Description	Qty
	PY10V00003F1	PUMP	1
Consists Of Ref. Numbers : 11-954
11	PY10V00003S011	PISTON ASSY.	1
13	PY10V00003S013	CYLINDER	1
30	PY10V00003S030	TRAY	1
41	PY10V00003S041	VALVE POPPET	2
111	PY10V00003S111	CLIP, SPRING	1
114	PY10V00003S114	TRANSMISSION SLEEVE	1
123	PY10V00003S123	ROLLER BEARING	1
124	PY10V00003S124	BEARING	1
127	2441U398S127	SPACER	1
130	PY10V00003S130	TURBINE	1
141	NSS	NOT SOLD SEPARAT; Cylinder	1
151	NSS	NOT SOLD SEPARAT; Piston	10
152	NSS	NOT SOLD SEPARAT; Ring, Thrust	10
153	PY10V00003S153	PLATE	1
156	2437U188S156	BUSHING	1
157	2437U188S157	SPRING	10
158	2437U188S158	THRUST RING	1
211	PY10V00003S211	LARGE PLATE; PLATE, LARGE	1
212	NSS	NOT SOLD SEPARAT; Plate, Face	1
214	NSS	NOT SOLD SEPARAT; Bushing	1
251	PY10V00003S251	COUPLING FLANGE	1
261	PY10V00003S261	COVER	1
271	PY10V00003S271	HOUSING	1
273	PY10V00003S273	COVER	1
313	NSS	NOT SOLD SEPARAT; Plate, Distribution	1
352	PY10V00003S352	COVER	1
363	PY10V00003S363	TRANSMISSION SLEEVE	1
365	NSS	NOT SOLD SEPARAT; Seat	1
366	NSS	NOT SOLD SEPARAT; Stop	1
367	NSS	NOT SOLD SEPARAT; Ball	1
401	ZS23C10045	SCREW,Hex Socket Head, M10 x 45mm	8
402	ZS23C08040	SCREW,Hex Socket Head, M8 x 40mm	2
406	ZS23C06016	SCREW,Hex Socket Head, M6 x 16mm	10
408	ZS23C06025	SCREW,Hex Socket Head, M6 x 25mm	2
416	ZS23C08030	SCREW,Hex Socket Head, M8 x 30mm; M8 x 30	4
424	ZS23C12030	SCREW,Hex Socket Head, M12 x 30mm	4
466	2441U667S466	PLUG	2
467	2441U436S468	PLUG	1
468	2441U549S464	PLUG	1
490	2441U722S490	PLUG	9
492	2436U1165S152	PLUG	2
508	PY10V00003S508	RESTRICTOR	2
530	PY10V00003S530	BALL JOINT	1
531	NSS	NOT SOLD SEPARAT; Ball Joint	1
532	PY10V00003S532	PISTON	1
534	PY10V00003S534	TAPPET	1
548	NSS	NOT SOLD SEPARAT; Pin	1
551	PY10V00003S551	COVER	1
611	PY10V00003S611	LEVER	1
621	PY10V00003S621	PISTON	1
622	PY10V00003S622	CYLINDER	1
624	PY10V00003S624	SPRING SEAT	1
625	PY10V00003S625	SPRING	1
626	PY10V00003S626	SPRING	1
627	2450U45S627	STEP	1
628	2436U2455S628	ADJUSTMENT SCREW	1
630	2436U1378S630	NUT	1
641	PY10V00003S641	BLOCK ASSY.	1
	PY10V00003R100	REPAIR KIT	1
Consists Of Ref. Numbers : 651, 652
651	PY10V00003S651	SLEEVE	1
652	PY10V00003S652	SPOOL	1
653	2441U722S617	PIN	2
654	2441U723S885	PIN	1
700	ZD12G03500	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	1
701	ZD12G07000	O-RING,69.40mm ID x 75.60mm OD x 3.10mm	1
702	ZD12G14500	O-RING,144.40mm ID x 150.60mm OD x 3.10mm	1
704	ZD12G02500	O-RING,24.40mm ID x 30.60mm OD x 3.10mm	1
705	ZD12P01600	O-RING	1
706	ZD12P01100	O-RING	4
707	ZD12P01800	O-RING	1
708	ZD12P00700	O-RING,1.6mm Thk x 6.8mm ID, 90 Duro	3
709	ZD12P02600	O-RING	1
710	ZD12P02000	O-RING,2.4mm Thk x 19.8mm ID, 90 Duro	1
711	ZD12P01400	O-RING	1
751	PY10V00003S751	GASKET	1
752	PY10V00003S752	GASKET	1
774	2441U398S778	OIL SEAL	1
792	ZD85G02500	BACK-UP RING	1
801	ZN11C08005	NUT	1
802	ZN11C16013	NUT	1
824	2441U398S820	RING	1
825	ZR26X01300	RING, SNAP; RING SNAP	1
885	ZP26D06012	PIN	1
901	PY10V00003S901	BOLT	1
924	2441U691S923	SCREW	1
954	2437U185S510	SET SCREW	1

Related Products

Hydraulic Pump Final Drive Hydraulic Parts Travel Reduction Swing Motor Swing Reduction Control Valve Display Screen Slew Bearing Engine Assembly Hydraulic Cylinder ECU Controller

Why Choose Us?

Quality Assurance
Fine Workmanship
Price Advantage
Stable Supply

Process Features

Standard production management
Advanced testing equipment
Heat Treatment Technology
Fitting of cylinder block and valve plate

About Our Factory

Belparts operates a large workshop dedicated to excavator parts production, covering all processes from material cutting, welding, heat treating, assembling, debugging, painting, testing - with every part thoroughly inspected before leaving the factory.

Frequently Asked Questions

If I only know the excavator model, but cannot offer parts number, what should I do?

If possible, you can send us pictures of old products, nameplate or the size for reference.

What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?

The warranty is 6/12 Months based on the item details.

How can I pay the order?

We can receive payment through T/T, Western Union, PayPal (for small amount), Alibaba trade assurance.

When will I get the items after I place order?

Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.

How can I do if there is something wrong with the items?

First of all, we have confidence in the quality of our products. If you really found something wrong, please provide pictures for us to check. After confirmation, please return to us and we will provide the correct item.

What is your main products?

We specialize in excavator spare parts, including travel motor gearbox/assembly/parts, swing gearbox/assembly/motor/parts, hydraulic pump assembly/parts and gear parts. If you need other excavator parts, we can also supply according to your requirements.
