Name: Excavator ZX200 ZX200-1 ZX200-3 travel motor 9234034 9237802 final drive gearbox for HMGE36EA
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: HMGE36EA ZX200 ZX200-1 ZX200-3
Price: 475.00 USD
Availability: InStock

خونه > محصولات > راهنمای موتور سفر >

Excavator ZX200 ZX200-1 ZX200-3 travel motor 9234034 9237802 final drive gearbox for HMGE36EA

Excavator travel motor final drive,ZX200 excavator gearbox assembly,HMGE36EA final drive gearbox

ZX200 excavator gearbox assembly

HMGE36EA final drive gearbox

محل منبع:

ساخته شده در چین

نام تجاری:

Belparts

شماره مدل:

HMGE36EA ZX200 ZX200-1 ZX200-3

با ما تماس بگیرید

درخواست نقل قول

Excavator ZX200 ZX200-1 ZX200-3 travel motor 9234034 9237802 final drive gearbox for HMGE36EA

جزئیات محصول

مدل:

HMGE36EA ZX200 ZX200-1 ZX200-3

شماره قطعه:

9234034 9237802

نام بخشی:

هيتاشي آخرین درایو

نور افکنی:

موتور مسافرتی HMGE36EA ZX200 ZX200-1 ZX200-3 9234034 9237802

برنامه:

قطعات یدکی بیل مکانیکی

نام بخشی:

موتور مسافرتی بیل مکانیکی

وضعیت:

OEM/ اصیل/ استفاده شده

تحویل:

3-7 روز

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

قیمت

Negotiated price

جزئیات بسته بندی

مورد چوبی

زمان تحویل

1 ~ 3 روز

شرایط پرداخت

T/T ، تضمین تجارت ، پی پال

قابلیت ارائه

1000 قطعه قطعه

محصولات مرتبط

Excavator final drive EC380E EC480DL VOE14593321 travel motor OEM spare parts

بهترین قیمت رو بدست بیار

Volvo excavator EC380E EC480DL VOE14593321 travel motor aftermarket parts

بهترین قیمت رو بدست بیار

Excavator ZX200 ZX200-1 ZX200-3 travel motor 9234034 9237802 final drive gearbox for HMGE36EA

بهترین قیمت رو بدست بیار

Hitachi excavator HMGE36EA ZX200 ZX200-1 ZX200-3 travel motor 9234034 9237802

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

+86 18520556972

belparts01@gmail.com

86-020-32384870

حالا تماس بگیرید

توضیحات محصول

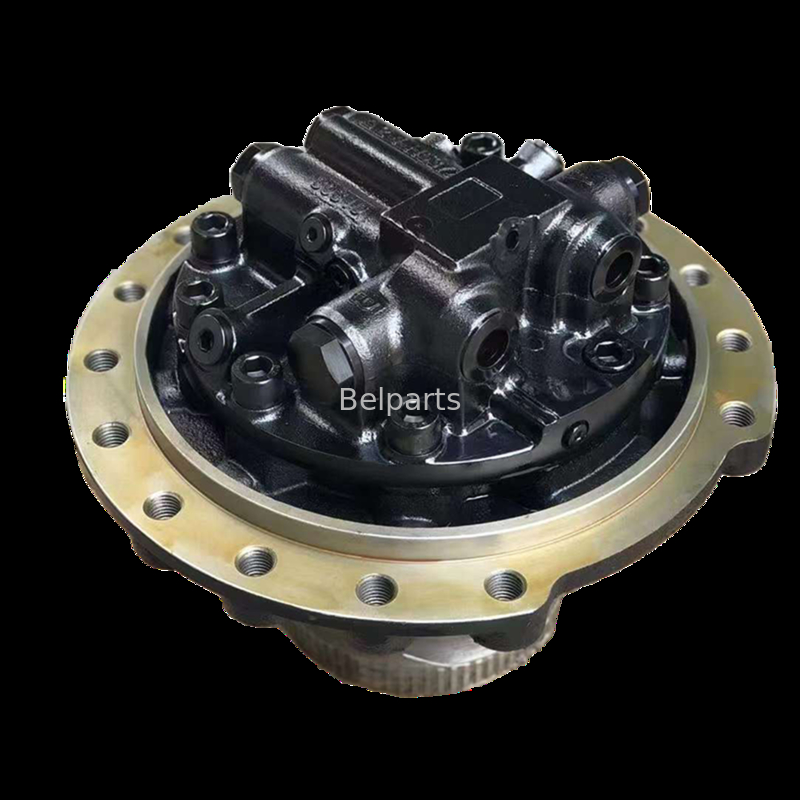

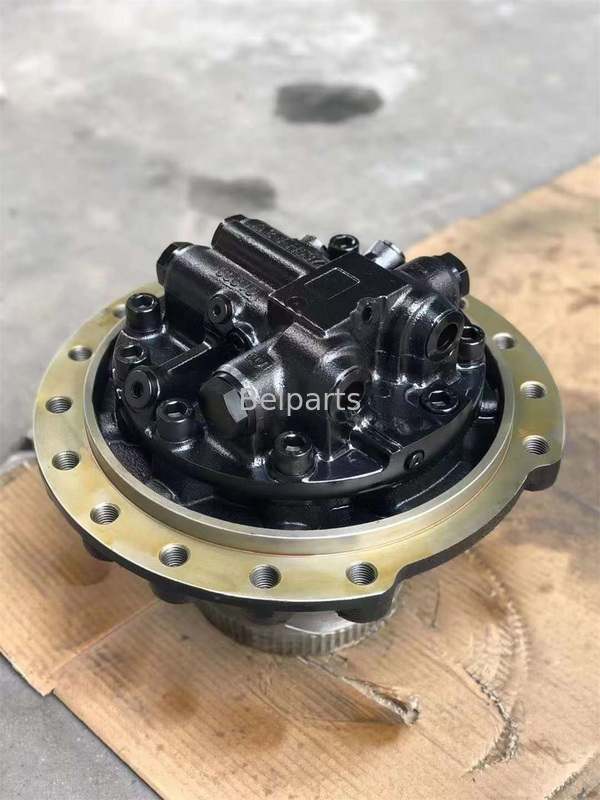

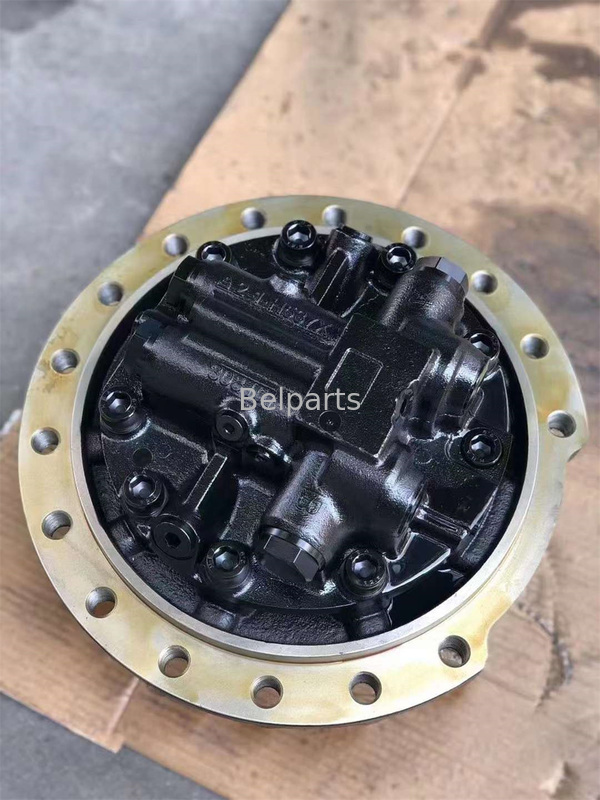

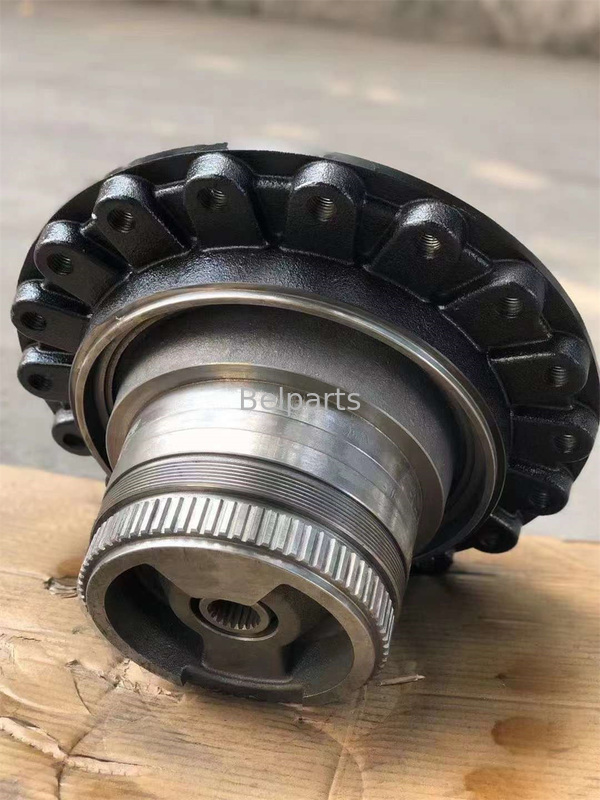

Excavator ZX200 ZX200-1 ZX200-3 travel motor 9234034 9237802 final drive gearbox for HMGE36EA

The excavator travel motor assembly is a critical component of the machine's chassis system, responsible for supporting the entire weight and providing mobility. It typically consists of tracks, sprockets, idlers, rollers (carrier and track), and travel motors. The design of the undercarriage directly impacts the excavator's stability, traction, and operational efficiency.

Product Specifications

Model	HMGE36EA ZX200 ZX200-1 ZX200-3
Part Name	Excavator Travel Motor
Part Number	9234034 9237802
Place of Origin	Other Country
Condition	Original
Warranty	12 months
MOQ	1 pcs
Production Capacity	1000pcs /Month
Standard or Nonstandard	Standard
Payment Term	L/C, T/T, Trade Assurance

List of spare parts

#	Part No	Part Name	Qty.
	9234034	MOTOR; OIL (FOR ASSEMBLY OF MACHINE)	1
	9237802	MOTOR; OIL (FOR TRANSPORTATION)	1
00	1031123	. HOUSING	1
01	4613831	. SEAL; OIL	1
03	4601724	. PISTON	1
07	2049166	. SHAFT	1
08	959499	. RING; RETAINING	1
09	4600108	. PIN	2
10	4600133	. BRG.; ROL.	1
15	8075190	. PISTON ASS'Y	9
15	8099321	. PISTON	9
16	3081570	. RETAINER	1
17	4397757	. BUSHING	1
18	2049256	. PLATE; SWASH	1
19	4396747	. SPRING; COMPRES.	6
20	2042060	. ROTOR	1
20	2052977	. ROTOR	1
20	2051451	. ROTOR	1
22	3081593	. PLATE; FRICTION	4
23	3081592	. PLATE	4
25	3081595	. PISTON	1
26	4396775	. O-RING	1
28	4396774	. O-RING	1
29	3081594	. SPRING; DISC	1
30	4420958	. O-RING	1
31	4506415	. O-RING	2
34	9234016	. VALVE; BRAKE (FOR ASSEMBLY OF MACHINE)	1
34	9237801	. VALVE; BRAKE (FOR TRANSPORTATION)	1
34	9247662	. VALVE; BRAKE (FOR ASSEMBLY OF MACHINE)	1
34	9260003	. VALVE; BRAKE (FOR TRANSPORTATION)	1
35	4396759	. BRG.; NEEDLE	1
35	4631910	. BRG.; NEEDLE	1
37	4610452	. PIN; KNOCK	2
37	4630921	. PIN; KNOCK	2
38	3101081	. PLATE; VALVE	1
38	3106481	. PLATE; VALVE	1
40	M341850	. BOLT; SOCKET	9

Working Principle

The undercarriage is driven by the hydraulic system, which powers the travel motor to rotate the sprocket, propelling the track. The idler wheel and carrier rollers ensure proper track movement, while track rollers prevent sagging. The track frame maintains overall stability, allowing the excavator to move flexibly across rough terrain.

Features & Advantages

High Driving Force: Adapts to challenging terrains like mud, sand, and rocky surfaces.
Superior Stability: Wide-track design reduces ground pressure, ensuring stability on soft ground.
Durability: Made of high-strength materials for wear and impact resistance, extending service life.
Easy Maintenance: Modular design simplifies disassembly and maintenance, minimizing downtime.

5. Applications

The undercarriage is widely used in construction sites, mining, agriculture, and forestry, particularly in environments requiring frequent movement and operation on uneven ground.
