محفظه موتور هيدروليک کاوشگر

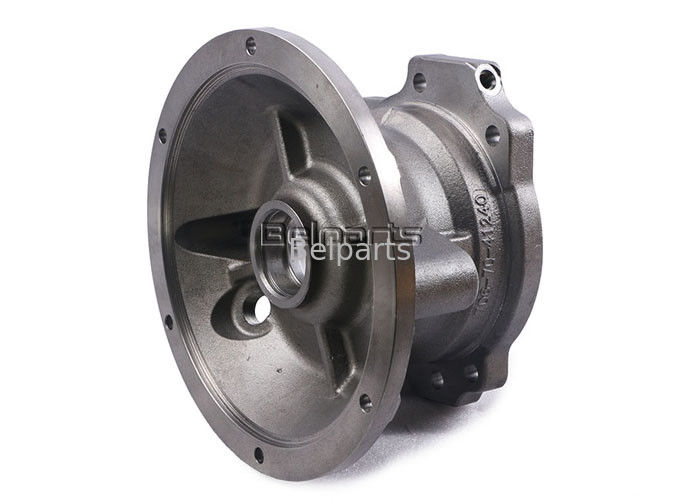

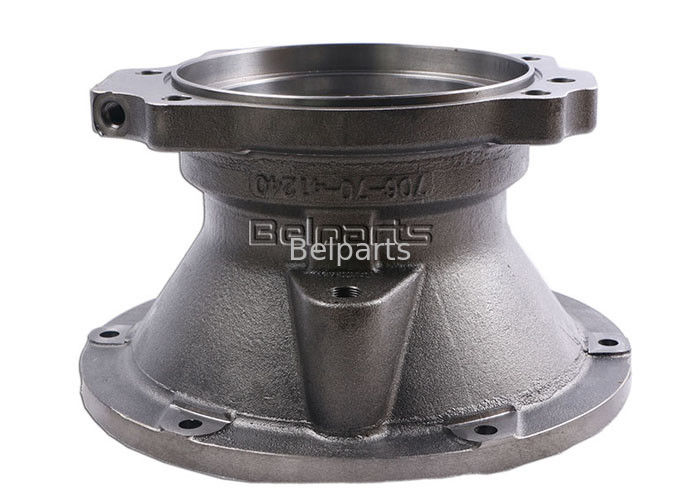

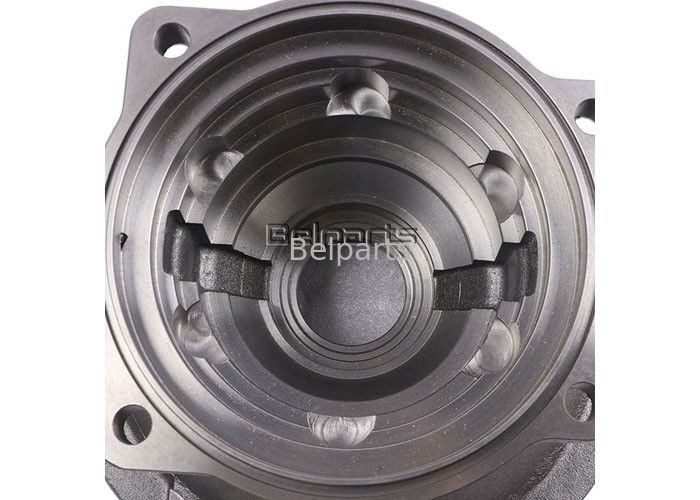

Excavator 706-7G-01140 PC200-8 PC200-7 Hydraulic Swing Motor Case
|
swing motor Case |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
PC200-8 PC200-7 |
|
MOQ: |
1 PCS |
|
Payment term: |
T/T & Paypal |
|
Delivery time: |
Within 2 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 706-7G-01140 | MOTOR ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 TO Y1640-03A0 | ||||
| 1 | (706-7G-03110) | MOTOR SUB ASS'Y | 1 | |
| 1 | (*706-7G-41630) | SHAFT,DRIVE | 1 | |
| 2 | (*706-75-42880) | Bearing | 1 | |
| 3 | (*706-7G-41660) | Spacer | 1 | |
| 4 | (*706-76-40890) | Bearing | 1 | |
| 5 | (*706-7G-41510) | SPACER KIT | 1 | |
| 5 | SPACER,T=3.1MM | 1 | ||
| 5 | SPACER,T=3.4MM | 1 | ||
| 5 | SPACER,T=3.7MM | 1 | ||
| 6 | 04064-04518 | RING,SNAP (WITHOUT R.P.C.U.) | 1 | |
| 7 | 706-75-43410 | SEAL,OIL | 1 | |
| 8 | 706-7G-41910 | Spacer | 1 | |
| 9 | 04065-06220 | RING, SNAP | 1 | |
| 10 | (*706-7G-41310) | BLOCK,CYLINDER | 1 | |
| 11 | (*706-7G-41720) | PLATE,VALVE | 1 | |
| 12 | (*706-75-43750) | PIN,DOWEL | 1 | |
| 13 | (*706-7G-41320) | SHAFT,CENTER | 1 | |
| 14 | (*706-7G-41130) | RING,CENTER | 1 | |
| 15 | (*706-7G-41140) | Spring | 1 | |
| 16 | (*706-7G-05010) | RETAINER KIT | 1 | |
| 16 | Retainer | 1 | ||
| 17 | Screw | 7 | ||
| 18 | (*706-7G-41410) | PISTON SUB ASS'Y | 7 | |
| 19 | (*706-7G-91441) | Plate | 5 | |
| 20 | (*706-7G-91450) | Disc | 4 | |
| 21 | (*706-7G-91120) | PISTON,BRAKE | 1 | |
| 22 | (*706-75-92310) | O-ring | 1 | |
| 23 | (*708-8F-31610) | O-ring | 1 | |
| 24 | (*706-7G-91360) | Spring | 6 |
Company Information
Our Factory
Our Advantages
-
Strong part number database.
If you can provide the right model and part number, we can supply the right product. -
Professional and experienced salesperson.
Our founder has been in this field for more than 6 years, with rich experiences. -
Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods. -
Good management system.
No matter how big or small the order, as long as customers place the order, we will provide exporting services free of charge. -
Good service attitude.
As long as customers’ requirements are reasonable, we will endeavor to make them satisfied.
Delivery
-
Packaging Details:
-
1.According to orders, pack the spare parts one by one by oil paper;
-
2.Put them into small carton boxes one by one;
-
3.Put the packed small carton boxes into bigger carton boxes one by one;
-
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
-
5. Goods is packed with oil paper and plastic bags inside
-
6.Using a wooden case package.
-
7.We support the custom-made demand for package
