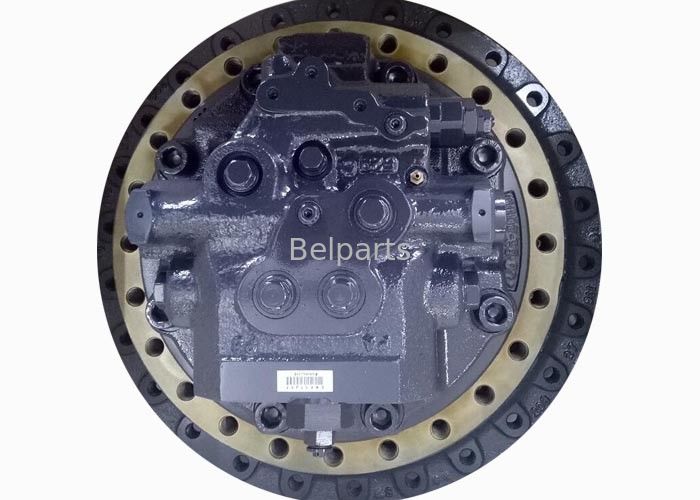

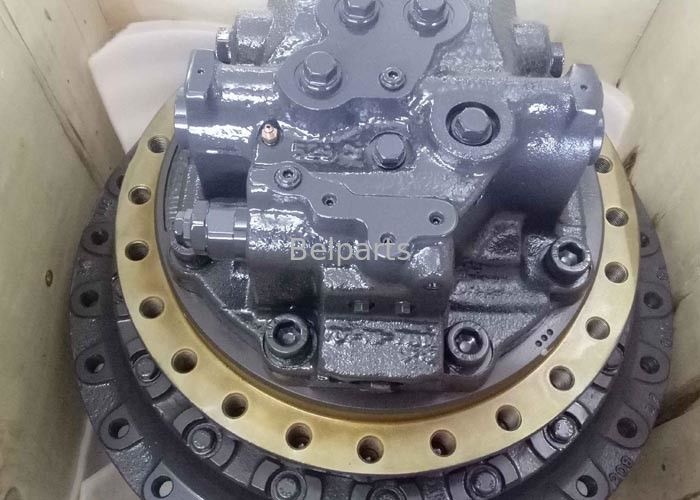

Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox

محل منبع ساخت چین
نام تجاری Belparts
شماره مدل 706-88-00151
مقدار حداقل تعداد سفارش 1 عدد
قیمت Negotiated price
جزئیات بسته بندی جعبه چوبی
زمان تحویل 1 ~ 3 روز
شرایط پرداخت T / T ، تضمین تجارت Alibaba ، PayPal
قابلیت ارائه 1000 عدد

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
مدل PC400-6 نام قسمت درایو نهایی
وزن 680 کیلوگرم ضمانتنامه 1 سال
بافت فولاد رنگ سیاه
MOQ 1 عدد نام تجاری Belparts
پیام بگذارید
توضیحات محصول

Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox






Product name Belparts excavator parts PC400-6 travel motor ass'y 706-88-00151 final drive
Part name Final drive
Excavator model Crawler Excavator
Appliion PC400-6
MOQ 1pcs
Material Alloy Steel
Delivery By sea,By air,By express
Package Standard shipping package





Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 0Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 1

List of spare parts

# 号码 名称 数量
1 (706-88-00151) MOTOR ASS'Y 2
1 (706-88-00150) MOTOR ASS'Y 2
2 208-27-00140 FLOATING SEAL ASS'Y 2
2 17M-27-00102 FLOATING SEAL ASS'Y 2
2 17M-27-00101 FLOATING SEAL ASS'Y 2
2   Ring 2
2   Ring 2
2   Ring 2
3   O-ring 2
4 208-27-61192 Hub 2
4 208-27-61191 Hub 2
4 208-27-61190 Hub 2
    (208-27-61191,706-88-00150?208-27-61261)
5 208-27-62110 Bearing 4
5 208-27-51240 BEARING,BALL 4
6 208-27-51212 Cover 2
6 208-27-51211 Cover 2
7 01010-81240 BOLT,FOR WEIGHT ADJUSTING BOLT 36
8 01643-31232 WASHER,(NOT USED WITH EMERGENCY STR.) 36
9 208-27-52350 O-ring 2
10 208-27-61270 Lock 2
11 208-27-61261 Nut 2
11 208-27-61260 Nut 2
12 01010-81020 BOLT,(FOR MONO LEVER STEERING) 4
13 208-27-61170 CARRIER,2ND 2
14 208-27-61140 Gear 8
15 207-27-61230 BEARING,2P 8
16 20Y-27-21250 WASHER,THRUST 16
17 207-27-61250 Pin 8
18 20Y-27-21290 Pin 8
19 207-27-52270 Spacer 2
20 208-27-61131 Gear 2
20 208-27-61130 Gear 2
21 208-27-61150 Gear 2
22 208-27-61160 CARRIER,1ST 2
23 208-27-61121 Gear 6
24 207-27-61220 BEARING,1P 6
25 20Y-27-21240 WASHER,THRUST 12
26 207-27-61240 Pin 6
27 20Y-27-21280 Pin 6
28 208-27-61111 Shaft 2
28 208-27-61110 Shaft 2
29 20Y-27-11250 Spacer 2
30 208-27-61350 BUTTON 2
30 207-27-61280 BUTTON 2
31 208-27-61180 Cover 2
32 207-27-52341 Bolt 56
33 01643-31845 WASHER,(WITHOUT R.O.P.S.) 56
34 07049-01215 PLUG,(FOR ROPS SWEEP) (WITHOUT CAB) 8
35 07044-12412 PLUG,MAGNETIC 4
36 07002-02434 O-RING,DRAIN PLUG? R.H. HALF TANK 4
37 208-27-61210 SPROCKET 2
38 207-27-51311 Bolt 52
39 01011-82000 CAPSCREW 48
40 01643-32060 FLAT WASHER - M20 (HARDENED) 48
41 208-30-61241 Cover 2
42 01010-81640 BOLT,(FOR SLAG HANDLING) (FOR USA) 12
42 01010-61640 BOLT (KIT) 12
42 01010-81640 BOLT,(FOR SLAG HANDLING) (FOR USA) 12
43 01643-31645 WASHER,(FOR TRAVEL MOTOR) (NOT SHOW) 12



Company Information


GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox.Our products have been exported to more than 100 countries and regions.



Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 2Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 3



Customer Review


Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 4Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 5



Delivery


Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 6Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 7Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 8

Factory Superority


Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 9Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 10Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 11Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 12Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 13



Our advantages


1.Strong part number database.
If you can provide the right model and part number, we can supply the right product.
2.Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
3.Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
4.Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
5.Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.



Excavator travel motor assy PC400-6 final drive 706-88-00151 travel gearbox 14



FAQ:


1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 1-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T,PayPal (for small amount) and Alibaba trade assurance.
