Name: SA7117-38060 14528258 SA 7220-00601 travel reduction gearbox for Volvo excavator EC290 EC290B
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: EC290 EC290B
Price: 475.00 USD
Availability: InStock

خونه > محصولات > گیربکس مسافرتی >

SA7117-38060 14528258 SA 7220-00601 travel reduction gearbox for Volvo excavator EC290 EC290B

Volvo excavator travel gearbox,EC290B reduction gearbox,SA7117-38060 travel gearbox

EC290B reduction gearbox

SA7117-38060 travel gearbox

محل منبع:

ساخته شده در چین

نام تجاری:

Belparts

شماره مدل:

EC290 EC290B

با ما تماس بگیرید

درخواست نقل قول

SA7117-38060 14528258 SA 7220-00601 travel reduction gearbox for Volvo excavator EC290 EC290B

جزئیات محصول

مدل:

EC290 EC290B

شماره قطعه:

SA7117-38060 14528258 SA 7220-00601

نام بخشی:

گیربکس کاهش سفر

کاربرد:

کاوشگر

نام:

گیربکس مسافرتی بیل مکانیکی

مارک:

ولوو

وضعیت:

جدید

زمان تحویل:

1-7 روز

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

Negotiable price

جزئیات بسته بندی

بسته بندی چوبی

زمان تحویل

1-7 روز

شرایط پرداخت

T/T ، PayPal و تضمین تجارت

قابلیت ارائه

1000 قطعه

محصولات مرتبط

Excavator E330C E330D E328D 227-6189 travel reduction gearbox repairment

بهترین قیمت رو بدست بیار

E330C E330D E328D excavator travel reduction gearbox 227-6189 final gearbox kit

بهترین قیمت رو بدست بیار

722441 722441 31NA-40022 31NA-40021 excavator travel reduction gearbox R375-7 DX340 DX345 construction machinery

بهترین قیمت رو بدست بیار

Hyundai R375-7 DX340 DX345 travel reduction gearbox 722441 722441 31NA-40022 31NA-40021 final gearbox

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

+86 13247509480

belparts02@gmail.com

86-020-32384870

حالا تماس بگیرید

توضیحات محصول

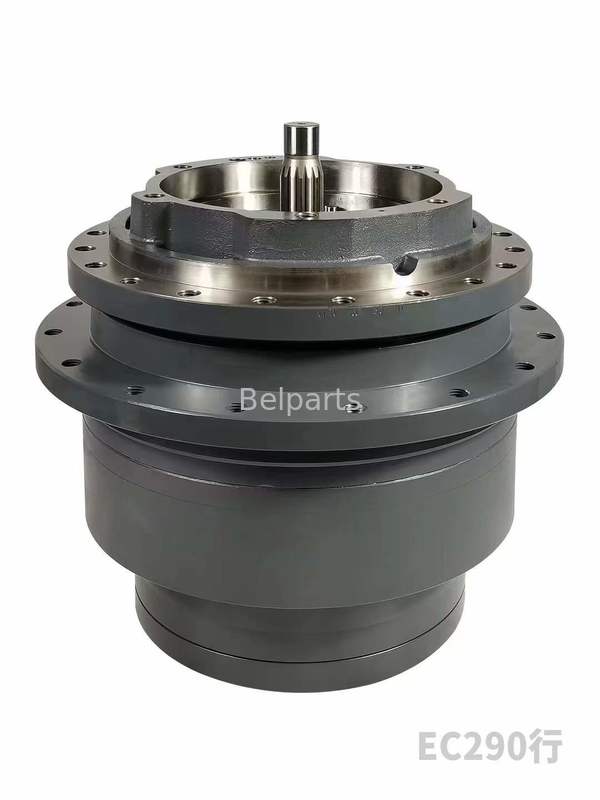

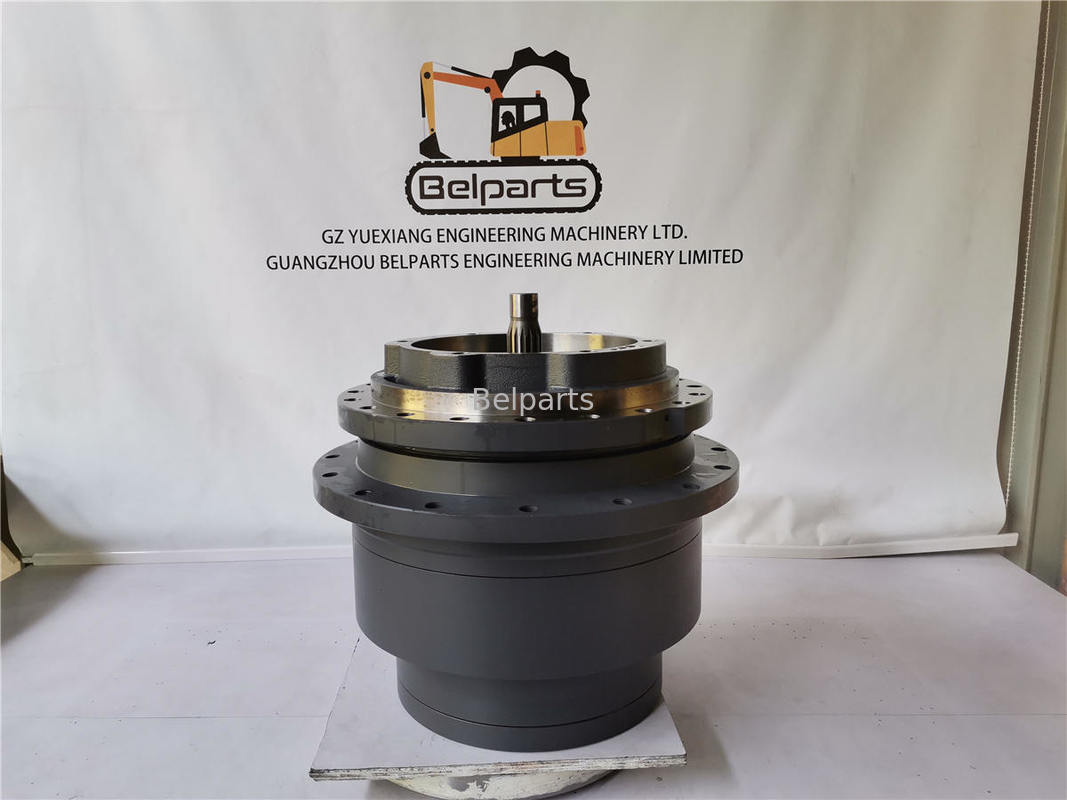

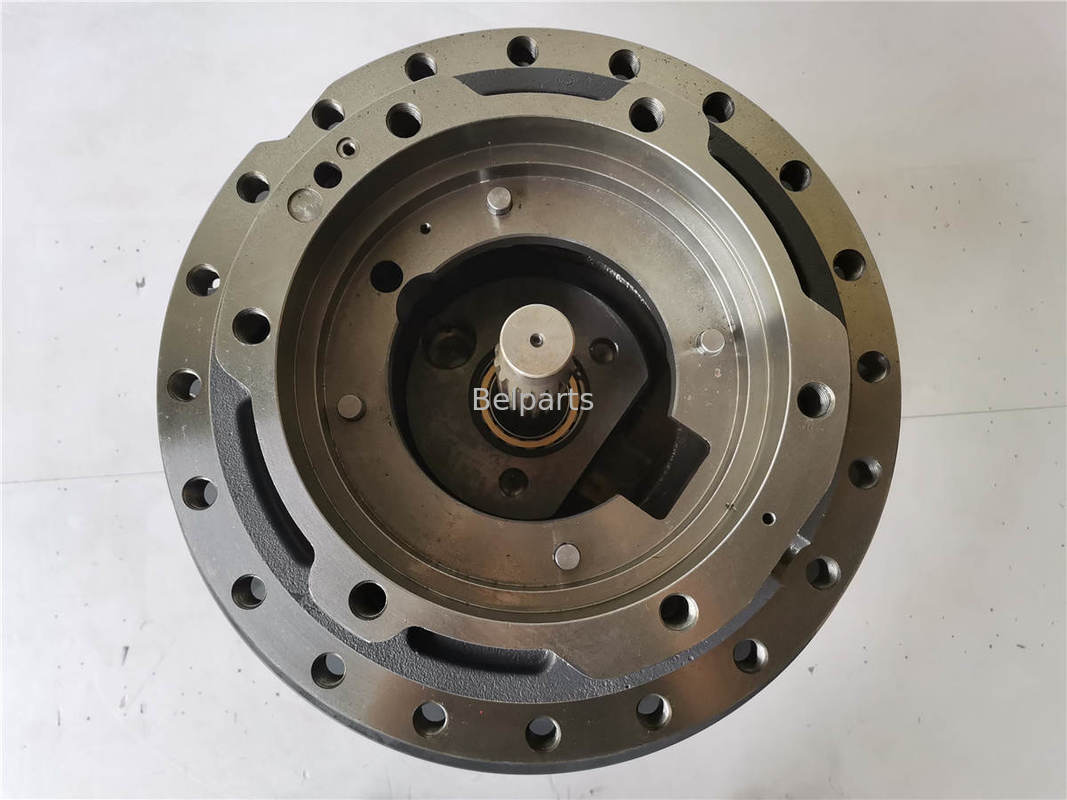

SA7117-38060 14528258 SA 7220-00601 Travel Reduction Gearbox for Volvo Excavator EC290 EC290B

The travel gearbox is a critical component in an excavator's undercarriage system, responsible for transmitting power from the hydraulic motor to the tracks or wheels, enabling precise movement and heavy-duty operation. Its reliability directly impacts the machine's productivity in mining, construction, and earthmoving applications.

Application	Excavator
Part Name	Excavator Travel Gearbox
Material	Steel
Model	EC290 EC290B
Part Number	SA7117-38060 14528258 SA 7220-00601
Payment Term	T/T, Paypal, Trade assurance, or as required
Delivery	3 days after the payment received
Shipment	By sea, by air, by express, or as required

List of Spare Parts

#	Part No	Part Name	Qty.	Price Request
	DG00A001	SA 7220-00601	Pump more	1
1	SA 7223-00110	Piston	2
2	SA 7223-00120	Piston	9
3	SA 7223-00130	Pad	9
4	SA 7223-00760	Cylinder	1
5	SA 7223-00070	Cylinder Block	1
6	SA 7223-00340	Plate	1
7	SA 7223-00770	Cylinder	1
8	SA 7223-00070	Cylinder Block	1
9	SA 7223-00350	Plate	1
10	SA 7223-00820	Valve more	1
11	SA 7223-00010	Shaft	1
12	SA 7223-00020	Shaft	1
13	SA 7223-00030	Connector	1
14	SA 7223-00040	Roller Bearing	2
15	SA 7223-00050	Needle Bearing	2
16	SA 7223-00060	Spacer	3
17	SA 7242-10210	Plate	2
18	VOE 14510060	Bushing	2
19	SA 7223-00170	Spring	18
20	SA 7223-00430	Stop	2
21	SA 7223-00210	Plate	2
22	VOE 14506635	Plate	2
23	SA 7223-00220	Plate	1
24	SA 7223-00240	Bushing	1
25	VOE 14506666	Support	2
26	SA 7223-00250	Support	1
27	SA 7242-11040	Plug more	29
28	VOE 14506634	Pin	2
29	SA 7223-00400	Pin	1
30	SA 7223-00570	Pin	1
31	SA 7223-00280	Cover	1
32	SA 7223-00290	Casing more	2
33	SA 7223-00310	Block	1
34	SA 7223-00390	Bolt	8
35	VOE 967630	Allen Hd Screw more	4
36	SA 9415-11021	Plug more	2
37	SA 7223-00480	Check valve	2
38	SA 7223-00510	Seat	1
39	SA 7223-00530	Stop	1
40	SA 9676-73200	Ball more	1
41	SA 7223-00490	Check valve	2
42	SA 7223-00510	Seat	1
43	SA 7223-00550	Stop	1
44	SA 9676-73200	Ball more	1
45	SA 9415-11051	Plug more	3
46	SA 7223-00690	O-ring	2
47	SA 9511-22105	O-ring more	1
48	SA 7223-00590	O-ring	2
49	SA 7223-00600	O-ring	2
50	SA 9511-12008	O-ring more	16
51	SA 9511-12011	O-ring more	4
52	SA 9511-12024	O-ring more	3
53	SA 7223-00700	O-ring	2
54	SA 7223-00710	Seal	1
55	SA 7223-00640	Ring	2
56	SA 7223-00650	Ring	2
57	VOE 979022	Nut more	4
58	SA 9541-01045	Snap Ring more	2
59	SA 7242-10560	Pin	2
60	SA 7223-00660	Spring Pin	4
61	SA 9031-11200	Eye Bolt more	2
62	SA 7223-00670	Set Screw	2
63	SA 7223-00680	Set Screw	2
64	SA 7223-00410	Piston	2
65	SA 7223-00420	Stop	2
100	SA 8148-15050	Sealing Kit more	1

Our Services

Delivery

Outside packing: standard export carton packing;
According to orders, pack the spare parts one by one in a small plastic bag;
Put them into small carton boxes one by one;
Put the packed small carton boxes into bigger carton boxes one by one;
Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
