Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction

محل منبع ساخت چین
نام تجاری Belparts
شماره مدل HMGF36 9283953
مقدار حداقل تعداد سفارش 1 عدد
قیمت Negotiated price
جزئیات بسته بندی جعبه چوبی
زمان تحویل 1 ~ 3 روز
شرایط پرداخت T / T ، تضمین تجارت Alibaba ، PayPal
قابلیت ارائه 1000 عدد

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
مدل ZX160LC-5 نام قسمت درایو نهایی
وزن 160 کیلوگرم ضمانتنامه 1 سال
بافت فولاد رنگ سیاه
MOQ 1 عدد نام تجاری Belparts
پیام بگذارید
توضیحات محصول

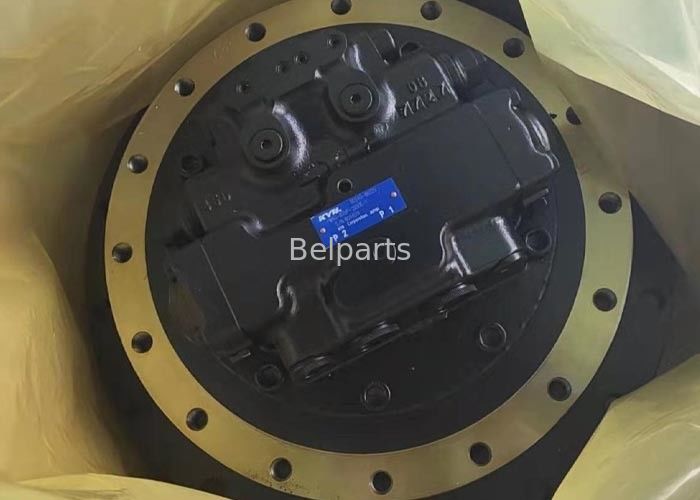

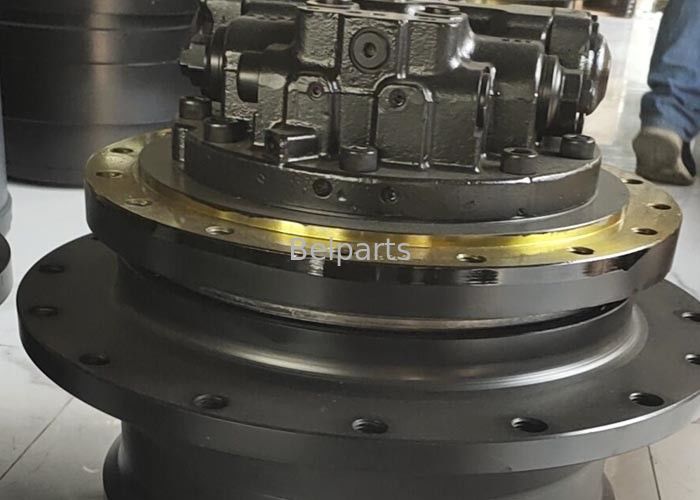

Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction








Product name Belparts excavator parts ZX160LC-5 travel motor ass'y HMGF36 9283953 final drive
Part name Final drive
Excavator model Crawler Excavator
Appliion ZX160LC-5
MOQ 1pcs
Material Alloy Steel
Delivery By sea,By air,By express
Package Standard shipping package



List of spare parts

# 号码 名称 数量
  9213322 TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) 1
  (9213445) TRAVEL DEVICE (FOR TRANSPORTATION) 1
00 9213425 . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) 1
00 (9213473) . MOTOR; OIL (FOR TRANSPORTATION) 1
02 4634693 . SEAL; GROUP 1
03 4246793 . BRG.; ROL. 2
04 1030236 . DRUM 1
05 1018740 . SPROCKET 1
06 J932055 . BOLT 16
07 A590920 . WASHER; SPRING 16
08 3086531 . NUT 1
10 4436242 . PIN; KNOCK 1
12 1030221 . CARRIER 1
14 4445529 . BRG.; NEEDLE 6
15 4269295 . PLATE; THRUST 12
16 4246790 . PIN 3
17 4116309 . PIN; SPRING 3
18 3094515 . GEAR; SUN 1
19 3094536 . GEAR; PLANETARY 3
20 1030343 . GEAR; RING 1
21 J931660 . BOLT 20
23 1030230 . CARRIER 1
24 4246785 . SPACER 2
25 3094496 . GEAR; PLANETARY 3
26 4452480 . BRG.; NEEDLE 3
28 4246789 . PIN 3
29 4246358 . PIN; SPRING 3
30 3094513 . GEAR; SUN 1
32 2047920 . CARRIER 1
33 3094506 . GEAR; PLANETARY 3
34 4387383 . BRG.; NEEDLE 3
35 4192910 . PLATE; THRUST 6
36 4469309 . PIN 3
37 4173093 . PIN; SPRING 3
38 2047928 . SHAFT; PROP. 1
40 2028212 . COVER 1
41 4478346 . PIN; STOPPER 1
42 4609016 . BOLT; SEMS 16
43 4245797 . PLUG 3
46   . NAME-PLATE 1
47 M492564 . SCREW; DRIVE 2
48 4246792 . O-RING 1

Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 0





Company Information


GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.



Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 1Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 2Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 3



Customer Review


Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 4

Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 5

Delivery


Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 6Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 7

Factory Superority


Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 8Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 9Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 10



Our advantages


1.Strong part number database.
If you can provide the right model and part number, we can supply the right product.
2.Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
3.Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
4.Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
5.Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.



Excavator travel motor assy HMGF36 9283953 finaL drive ZX160LC-5 reduction 11



FAQ:


1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 1-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T,PayPal (for small amount) and Alibaba trade assurance.
